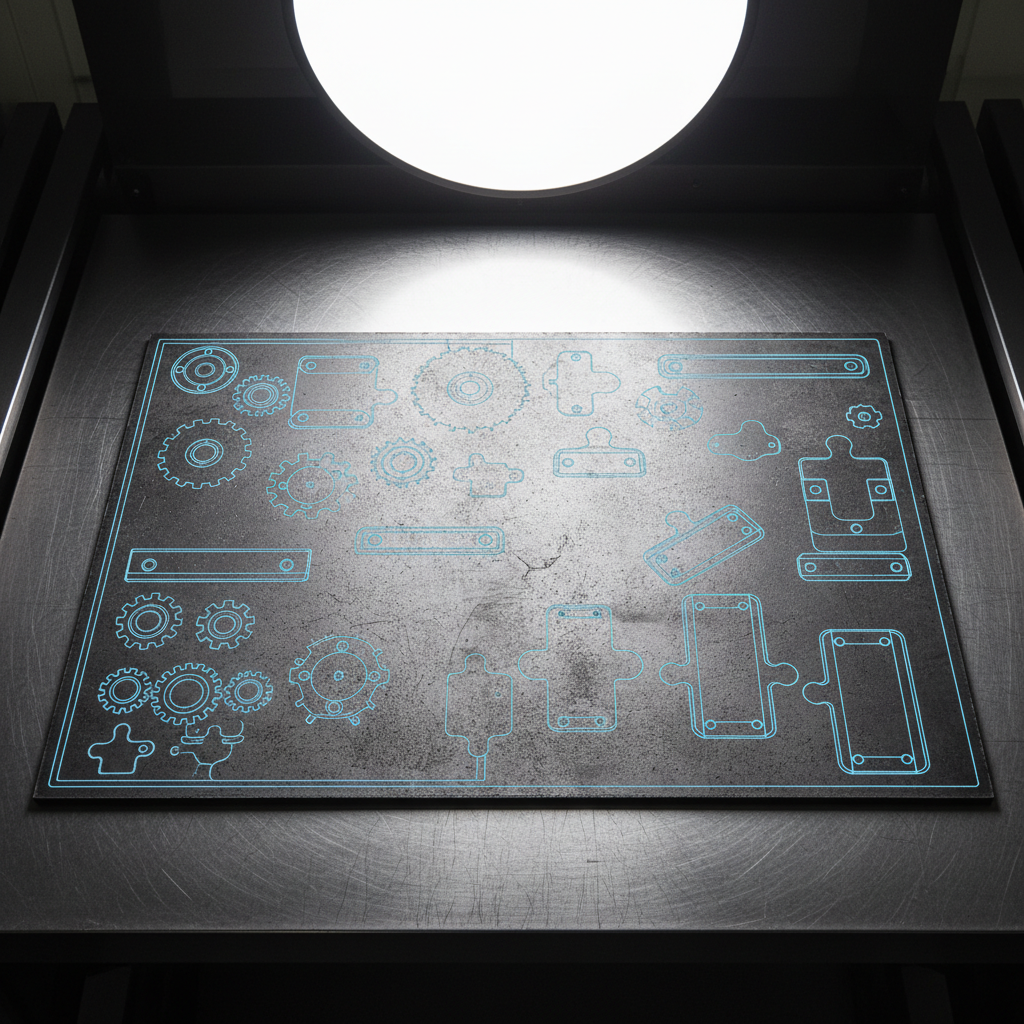

Raw steel sheet with DXF outlines — flat stock before laser cutting
147.5mm220.0mm
RAW STOCK — 3.0mm MILD STEEL

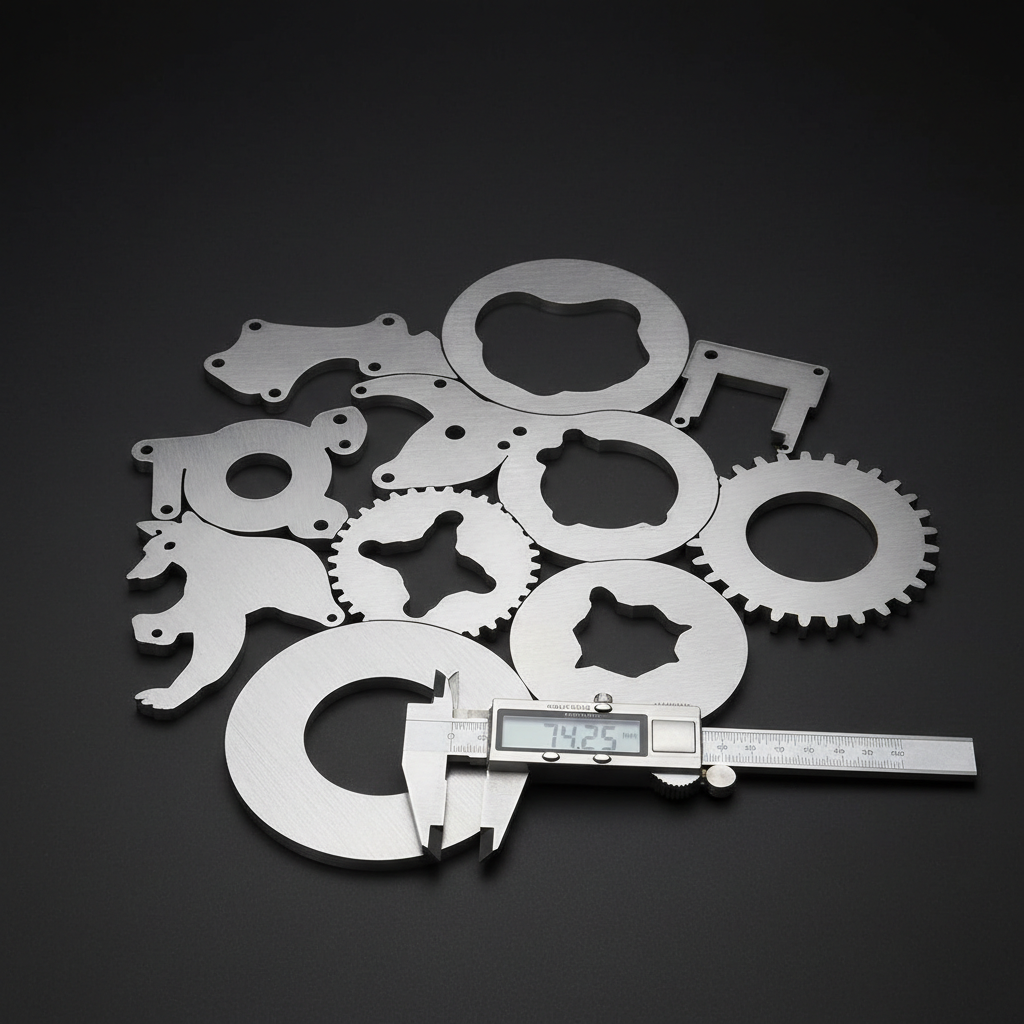

Finished laser cut steel parts nested on matte black surface with machinist caliper for scale
FINISHED — EDGE GRADE A2 · ±0.1mm
Precision Laser Cutting

From flat stock to finished part. 24 hours.

Steel, aluminum, and acrylic cut to your DXF — sub-millimeter tolerances, burr-free edges, same-day quoting.

±0.1mm TOLERANCE◆MILD STEEL · STAINLESS · ALUMINUM · ACRYLIC · WOOD◆24-HOUR TURNAROUND◆DXF · DWG · AI · PDF ACCEPTED◆1 PIECE TO 5,000 PIECES◆EDGE GRADE A1 & A2◆NESTING OPTIMIZED◆NO ACCOUNT REQUIRED◆±0.1mm TOLERANCE◆MILD STEEL · STAINLESS · ALUMINUM · ACRYLIC · WOOD◆24-HOUR TURNAROUND◆DXF · DWG · AI · PDF ACCEPTED◆1 PIECE TO 5,000 PIECES◆EDGE GRADE A1 & A2◆NESTING OPTIMIZED◆NO ACCOUNT REQUIRED◆
01 — Materials

What we cut.

Five materials. One workflow. Every spec listed below is a guaranteed deliverable, not a marketing claim.

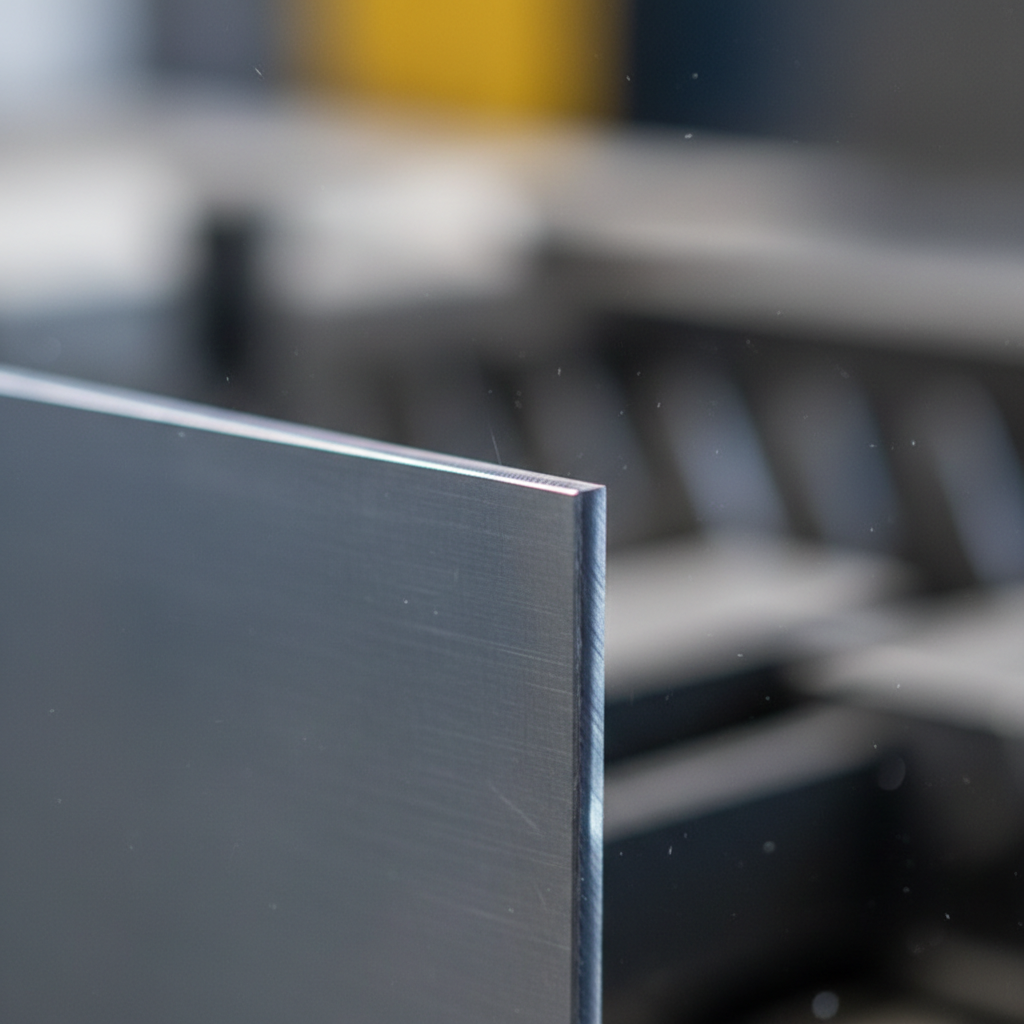

Macro photograph of laser cut mild steel edge showing clean kerf and flat surface
GRADE A2

Mild Steel

S235 / A36

Thickness

0.5 – 25.0 mm

Tolerance

±0.1 mm

Ideal for structural brackets, enclosures, jigs

Polished stainless steel laser cut letters resting on dark surface showing mirror edge finish
GRADE A1

Stainless Steel

304 / 316L

Thickness

0.5 – 12.0 mm

Tolerance

±0.08 mm

Signage, food-grade hardware, architectural panels

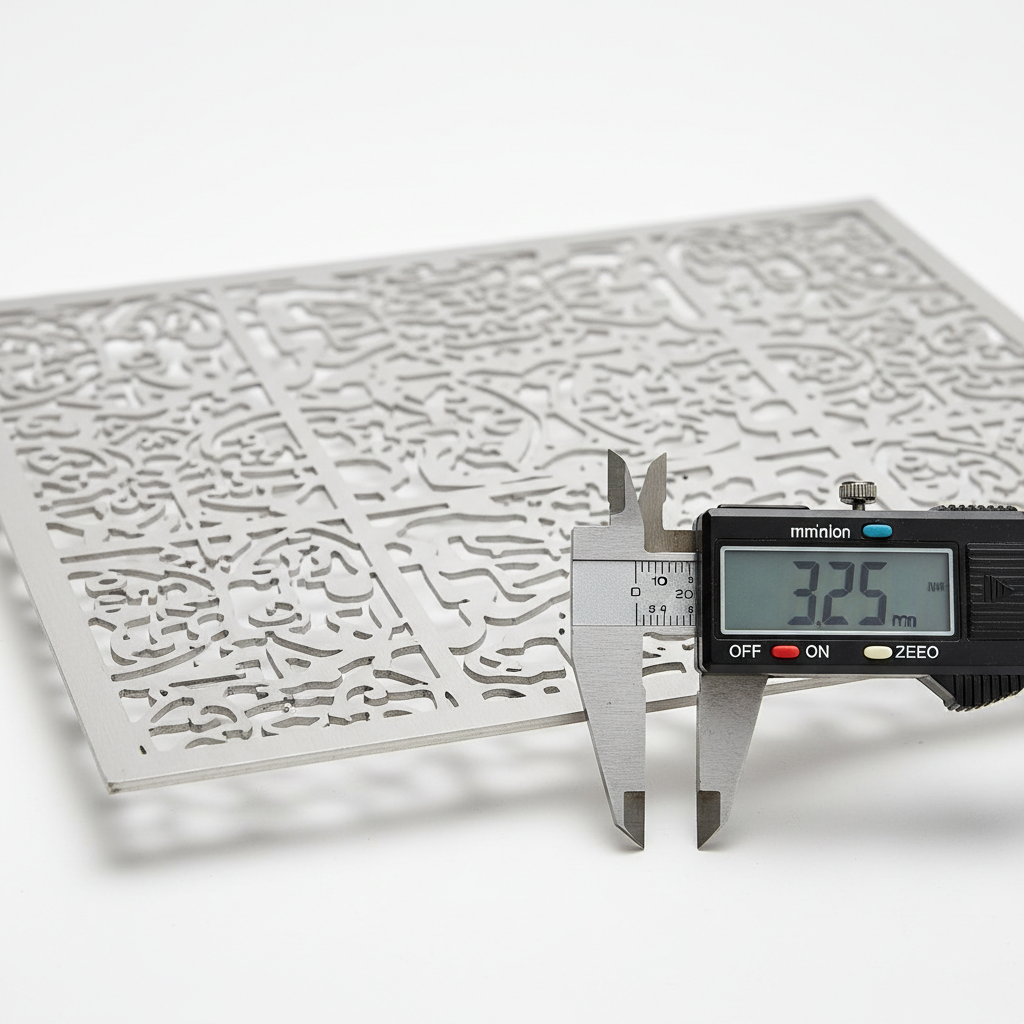

Aluminum laser cut panel with multiple cutouts photographed with caliper showing precision measurement
GRADE A2

Aluminum

5052 / 6061

Thickness

0.5 – 20.0 mm

Tolerance

±0.1 mm

Enclosures, heat sinks, aerospace prototypes

Clear acrylic sheet laser cut with clean polished edges showing light refraction along cut line
GRADE Polished

Acrylic

Cast / Extruded

Thickness

1.5 – 25.0 mm

Tolerance

±0.15 mm

Display panels, light diffusers, prototype housings

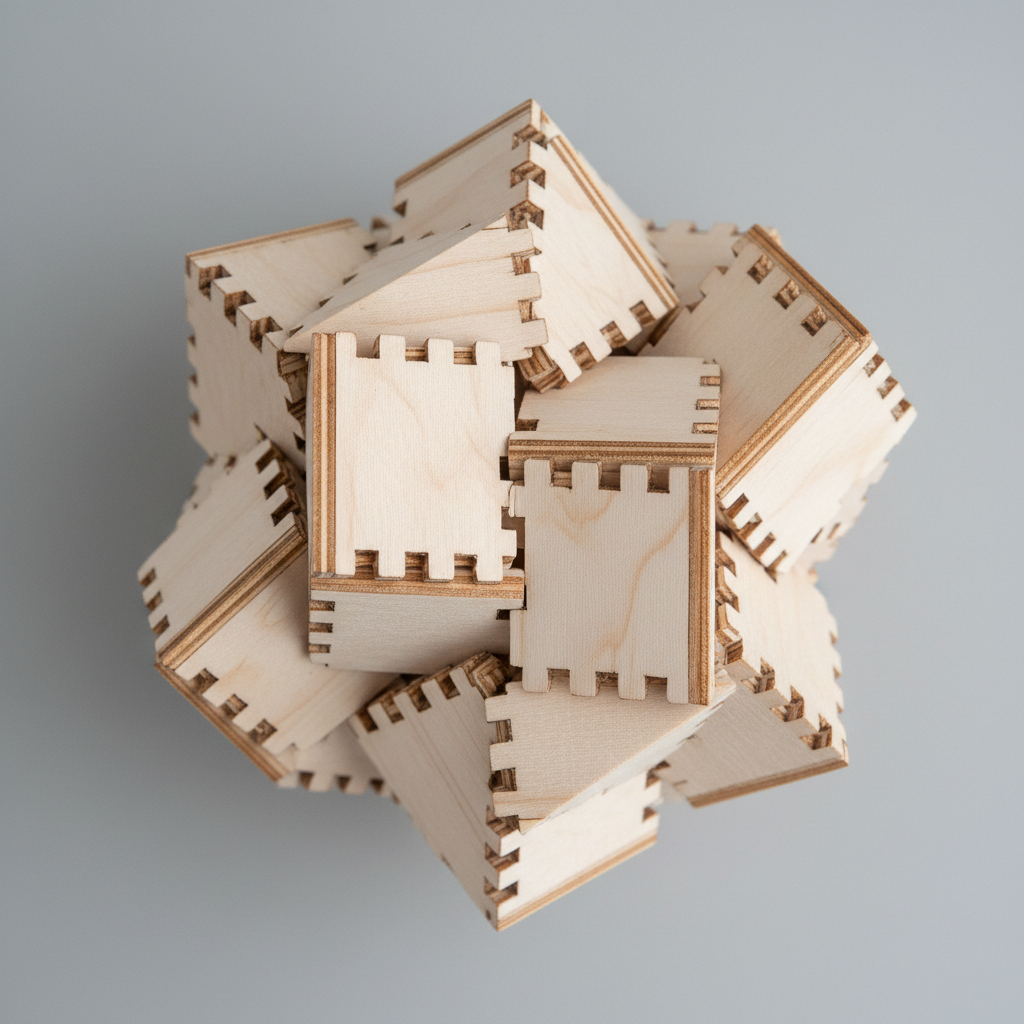

Birch plywood laser cut pieces with precise interlocking joints showing clean wood edges
GRADE Clean

Wood / MDF

MDF / Birch Ply

Thickness

3.0 – 18.0 mm

Tolerance

±0.2 mm

Prototypes, packaging inserts, display fixtures

02 — Quality

Edge grade.
Not an adjective.

Every cut is measured. Ra values are recorded per job. If your edge finish doesn't match the spec, we recut — no questions.

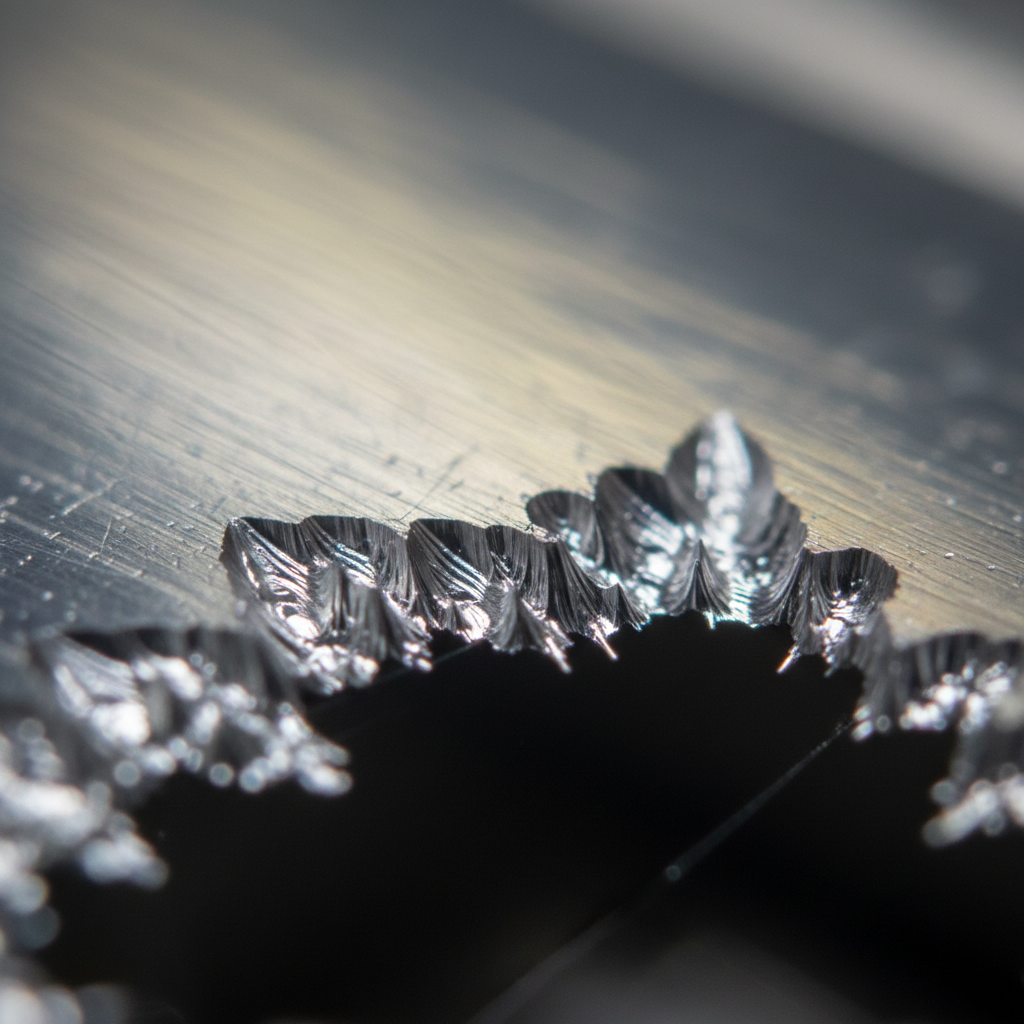

Close-up macro photograph of mirror-finish stainless steel laser cut edge showing sub-micron surface roughness
GRADE A1

Mirror Edge

Surface roughness

Ra ≤ 1.6 µm

Stainless steel ≤ 6mm. No visible striations under 10× magnification. Suitable for consumer-facing surfaces.

MATERIALS

SS 304, SS 316L

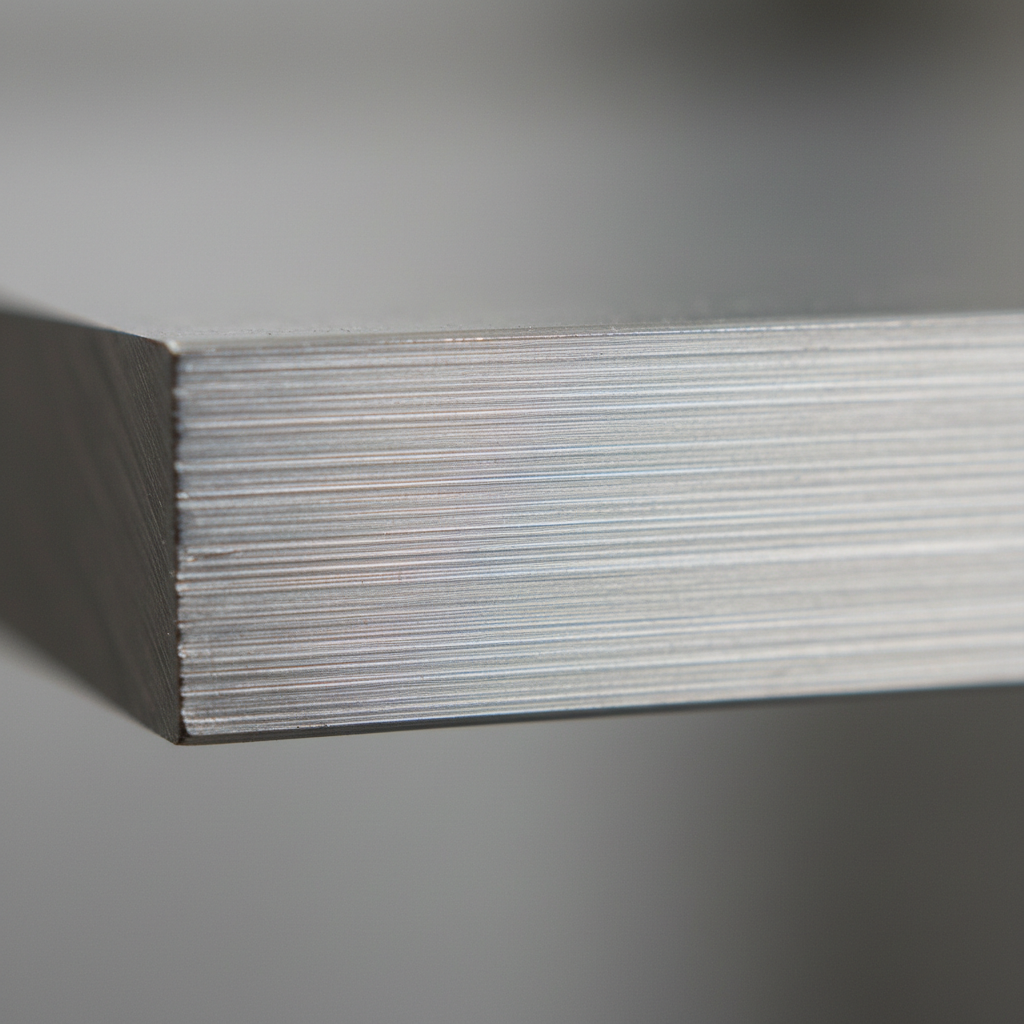

Aluminum laser cut edge macro photograph showing fine parallel striations aligned to cut direction
GRADE A2

Machined Finish

Surface roughness

Ra ≤ 3.2 µm

Mild steel & aluminum. Fine striations aligned to cut direction. Powder-coat and anodize ready without secondary finishing.

MATERIALS

MS, AL 5052/6061

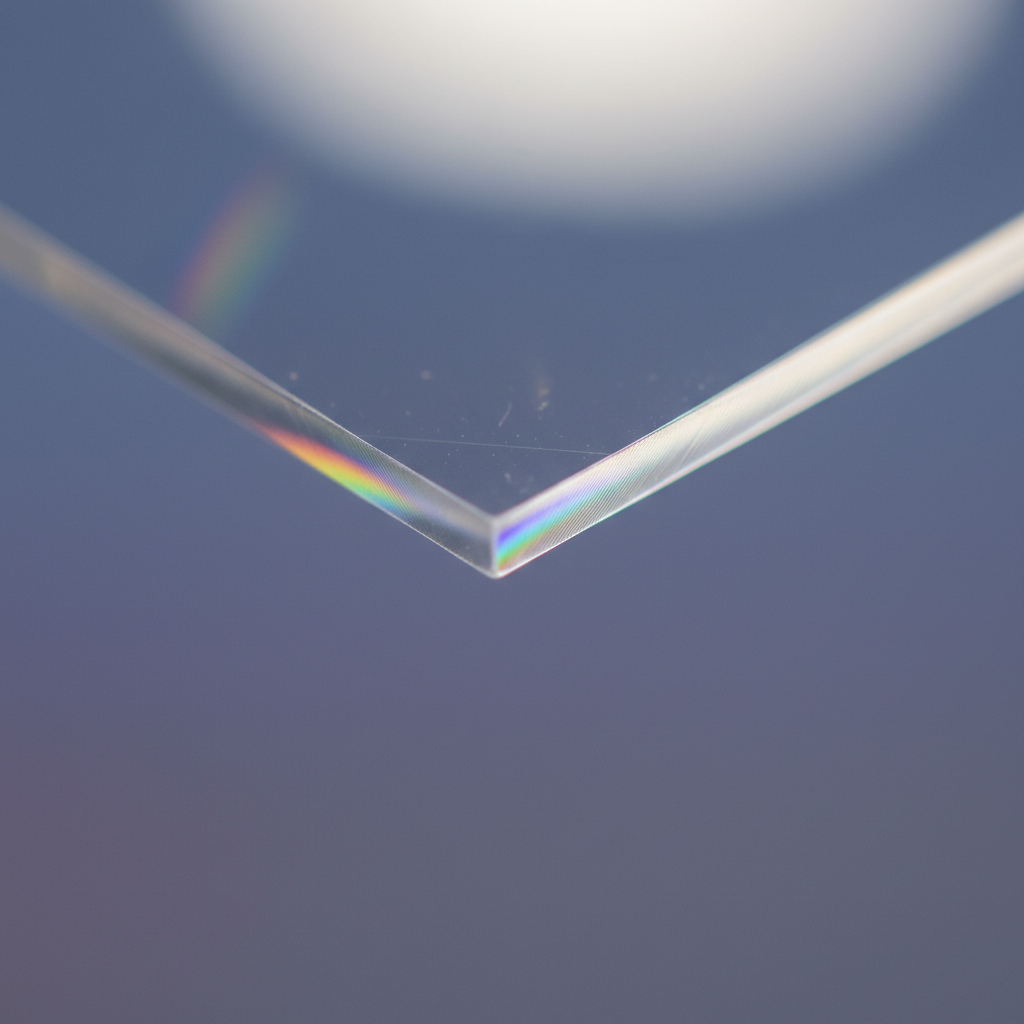

Acrylic laser cut edge showing clean polished finish with light refraction along the cut line
GRADE A3

Clean Cut

Surface roughness

Ra ≤ 6.3 µm

Acrylic and wood. Polished or clean-cut edge depending on material. No melt-back or charring on standard thickness.

MATERIALS

Acrylic, MDF, Ply

◆ Tolerance Reference — All values are guaranteed minimums

ParameterValueCondition
Positional accuracy±0.1 mmAll metals ≤ 10mm thick
Kerf width0.1 – 0.3 mmMaterial & thickness dependent
Perpendicularity≤ 1°Edge angle from vertical
Flatness (sheet)≤ 1.5 mm/mPost-cut, unclamped
Hole diameter min.= material thicknessOr 1.0mm, whichever is larger
Min. feature spacing2× material thicknessEdge-to-edge

* All tolerances per ISO 9013 Class 1–2 unless otherwise specified. Tighter tolerances available on request.

±0.1mm

Positional accuracy

0.0%

Rework rate, last 90 days

ISO 9013

Edge quality standard

100%

Parts inspected before ship

03 — Capabilities

Quantities, lead times,
and file specs.

One-off prototypes ship in 24 hours. 500-piece bracket runs ship in a week. No minimum order quantity.

◆ Standard Lead Times

QuantityLead TimeType
1 – 10 pcs24 hoursPrototype / same-day
11 – 50 pcs2–3 daysSmall batch
51 – 250 pcs4–5 daysProduction run
251 – 1,000 pcs7–10 daysVolume order
1,001 – 5,000 pcsQuote requiredHigh-volume / overflow

* Rush 12-hour service available for prototype quantities. Contact for pricing.

◆ Accepted File Formats

.DXFAutoCAD Drawing Exchange — preferredPREFERRED
.DWGAutoCAD native drawingPREFERRED
.AIAdobe Illustrator (paths only)
.PDFVector PDF (paths must be outlined)
.SVGScalable vector graphics
.STEP / IGES3D → 2D flat pattern extraction

◆ Equipment — 3 Machines, 24/7 Capacity

Fiber Laser 6kW

MaterialsSteel · Stainless · Aluminum · Copper
Max thickness25mm steel
Bed size3000 × 1500 mm

CO₂ Laser 150W

MaterialsAcrylic · Wood · Leather · Foam
Max thickness25mm acrylic
Bed size2440 × 1220 mm

Fiber Laser 3kW

MaterialsTube · Pipe cutting (round/square)
Max thickness12mm wall
Bed size6m tube length

Trusted by engineers at

FictivProto LabsXometryFast RadiusPlethora
04 — Get a Quote

Drop your file.
Get a quote today.

No account. No phone call. Drag a DXF and get a price within the hour during business hours.

Request Capabilities Sheet

Drag & drop your files here

DXF · DWG · AI · PDF · SVG · STEP · IGES

Quote turnaround: <1 hour (business hours Mon–Fri 7am–6pm CT)
No account required. No spam. Just a price.

Still scoping vendors?

Download our full capabilities sheet — materials, tolerances, machine specs, and certifications in one PDF.
